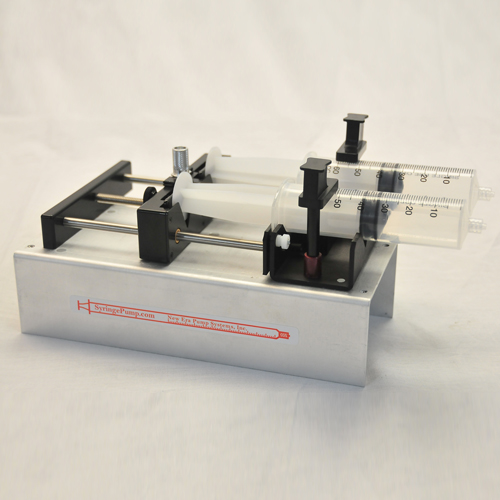

New Era Pump Systems, OEM Double Syringe Pump

SKU: NEPS-NE-4500-Series

Price Range$625.00$695.00

Description

  • Does not have a built-in user interface
  • Chassis mountable: 9 1/2″L x 4″W x 4 1/8″H (24.13 x 10.16 x 10.5 cm)
    If chassis does not fit in your system, we make custom designed OEM syringe pumps to accommodate your specific needs.
  • Operates from a 12V DC power source
  • Holds 2 syringe up to 60 mL. The long chassis version holds 140 mL syringes
  • Infusion rates from 1.430 µL/hr (1 mL syringe) to 7515 mL/hr (60 mL syringe)
  • Fully programmable and automation capable
  • Operates stand-alone or from a computer
  • Infusion and withdrawal
  • Available in Stall Detection and Long Chassis options.
  • Set a single pumping rate and/or dispensing volume
  • Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, extra I/O expansion port, sound the buzzer
  • Network, control and monitor up to 100 pumps with one computer
  • Worldwide power supplies available
  • Motor stall detection available
  • Dispensing accuracy of /-1%
  • Unlimited lifetime technical support
  • Two year warranty
  • Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.
  • Download our free pump terminal emulator or get a trial version of our Windows based SyringePumpPro
  • Custom modifications to the mechanics and firmware are also available
Syringe Size Maximum Rate Minimum Rate
0.5 µL 90.39 µL/hr 0.001 µL/hr
1 mL 187.4 mL/hr 1.430 µL/hr
3 mL 793.4 mL/hr 6.054 µL/hr
5 mL 1320 mL/hr 10.08 µL/hr
10 mL 2153 mL/hr 16.44 µL/hr
20 mL 3425 mL/hr 26.14 µL/hr
30 mL 4468 mL/hr 34.09 µL/hr
60 mL 7515 mL/hr 57.34 µL/hr
140 mL 205 mL/min 93.87 µL/hr



NameSKUPriceBuy
New Era Pump Systems, OEM Double Syringe Pump - Options: Standard ChassisNEPS-NE-4500$625.00
New Era Pump Systems, OEM Double Syringe Pump - Options: Standard Chassis, Stall DetectionNEPS-NE-4501$680.00
New Era Pump Systems, OEM Double Syringe Pump - Options: Long ChassisNEPS-NE-4500L$640.00
New Era Pump Systems, OEM Double Syringe Pump - Options: Long Chassis, Stall DetectionNEPS-NE-4501L$695.00
