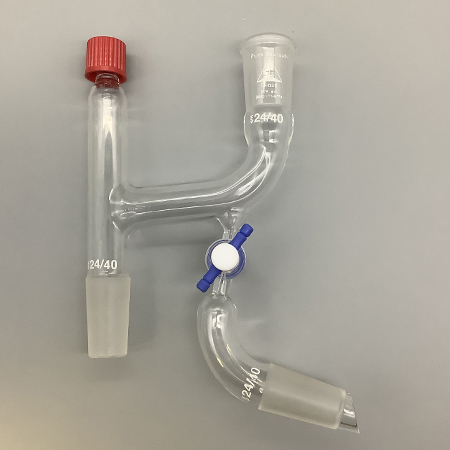

Adapter, Claisen, Take-Off, #18 GL Threaded Thermocouple Port, 4mm Teflon Stopcock for Vacuum Isolation

Description

Claisen Adapter top of the main tube has a #18 GL thread. Bottom take-off tube has a 4mm teflon stopcock and drip tip. All other joints are the same size. Supplied with plastic cap and teflon seal ring.

Teflon Information

Teflon, also known as PTFE (Polytetrafluoroethylene), is a synthetic fluoropolymer with a wide range of applications due to its unique properties. Key specifications include high temperature resistance, excellent chemical resistance, low friction, and non-stick characteristics.

Borosilicate Glassware Information

Prism Research Glass makes our glassware of Borosilicate Glassware often referred to as Pyrex. Borosilicate glassware is made from a blend of silica and boron trioxide. It is the standard for laboratory use because of its chemical resistance to various chemicals. This resistance makes it suitable for diverse laboratory applications. It is highly resistant to chemical attack by most substances, including water, acids, and organic solvents.

Borosilicate has a low coefficient of thermal expansion which means it can withstand rapid temperature changes. It can typically handle temperature ranges between -80°C (-112°F) and 500°C (930°F) without cracking and typically has a melting point of around 1650°C (3000°F).

Custom Fabrication Available

Prism Research Glass has the skills and equipment to fabricate custom-designs. Prism Research Glass can produce repetitive items as well as perform a single unit fabrication. If your needs require a custom fabrication please contact the Prism Research Glass team with your specifications. You can call us Toll Free at (800) 771-6773 or fill out our form here.

We pledge excellence in everything we make and market, providing the safest, most effective and highest quality products.

Borosilicate Glassware MSDS
