Condenser, High Speed
SKU: PRG-7410
Price Range$1,133.26 – $1,576.17
Description

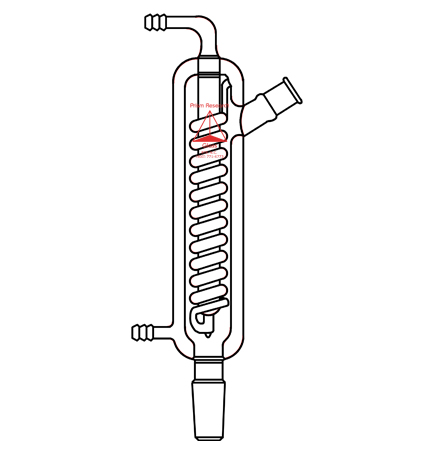

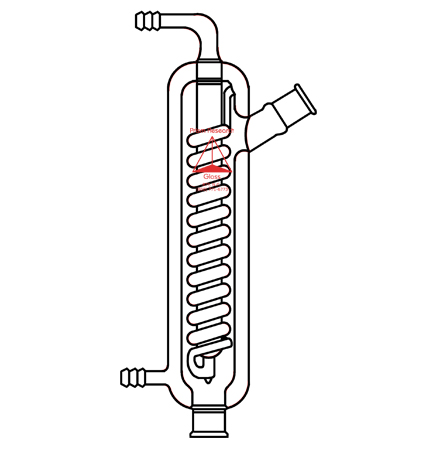

The High Speed Condenser provides the maximum amount of surface cooling for the space provided. The vapor is condensed on the inner wall of the water jacket and on the interior vapor tube. The vapor tube has a cooling coil wrapped around it for additional cooling and mixing. This multi-cooling surface yields a high efficiency per unit length. Hose barbs measure 14mm at middle serration.
Borosilicate Glassware Information
Prism Research Glass makes our High Speed Condenser of Borosilicate Glassware often referred to as Pyrex. Borosilicate glassware is made from a blend of silica and boron trioxide. It is the standard for laboratory use because of its chemical resistance to various chemicals. This resistance makes it suitable for diverse laboratory applications. It is highly resistant to chemical attack by most substances, including water, acids, and organic solvents.
Borosilicate has a low coefficient of thermal expansion which means it can withstand rapid temperature changes. It can typically handle temperature ranges between -80°C (-112°F) and 500°C (930°F) without cracking and typically has a melting point of around 1650°C (3000°F).
Custom Fabrication Available
Prism Research Glass has the skills and equipment to fabricate custom-designs. Prism Research Glass can produce repetitive items as well as perform a single unit fabrication. If your needs require a custom fabrication please contact the Prism Research Glass team with your specifications. You can call us Toll Free at (800) 771-6773 or fill out our form here.
We pledge excellence in everything we make and market, providing the safest, most effective and highest quality products.
| Name | SKU | Price | Buy |
|---|---|---|---|
| Condenser, High Speed - Jacket Length: 500 mm, Lower Connection: 24/40 Standard Taper, Upper Connection: 24/40 Standard Taper | PRG-7410-01 | $1,133.26 | |
| Condenser, High Speed - Jacket Length: 600 mm, Lower Connection: 24/40 Standard Taper, Upper Connection: 24/40 Standard Taper | PRG-7410-02 | $1,151.23 | |
| Condenser, High Speed - Jacket Length: 700 mm, Lower Connection: 24/40 Standard Taper, Upper Connection: 24/40 Standard Taper | PRG-7410-03 | $1,167.16 | |
| Condenser, High Speed - Jacket Length: 500 mm, Lower Connection: 29/42 Standard Taper, Upper Connection: 24/40 Standard Taper | PRG-7410-11 | $1,153.20 | |
| Condenser, High Speed - Jacket Length: 600 mm, Lower Connection: 29/42 Standard Taper, Upper Connection: 24/40 Standard Taper | PRG-7410-12 | $1,179.14 | |
| Condenser, High Speed - Jacket Length: 700 mm, Lower Connection: 29/42 Standard Taper, Upper Connection: 24/40 Standard Taper | PRG-7410-13 | $1,207.09 | |
| Condenser, High Speed - Jacket Length: 500 mm, Lower Connection: 45/50 Standard Taper, Upper Connection: 29/42 Standard Taper | PRG-7410-21 | $1,227.03 | |
| Condenser, High Speed - Jacket Length: 600 mm, Lower Connection: 45/50 Standard Taper, Upper Connection: 29/42 Standard Taper | PRG-7410-22 | $1,296.85 | |
| Condenser, High Speed - Jacket Length: 700 mm, Lower Connection: 45/50 Standard Taper, Upper Connection: 29/42 Standard Taper | PRG-7410-23 | $1,360.68 | |
| Condenser, High Speed - Jacket Length: 500 mm, Lower Connection: 65/40 Ball, Upper Connection: 29/42 Standard Taper | PRG-7410-31 | $1,235.03 | |
| Condenser, High Speed - Jacket Length: 600 mm, Lower Connection: 65/40 Ball, Upper Connection: 29/42 Standard Taper | PRG-7410-32 | $1,304.83 | |
| Condenser, High Speed - Jacket Length: 700 mm, Lower Connection: 65/40 Ball, Upper Connection: 29/42 Standard Taper | PRG-7410-33 | $1,392.61 | |
| Condenser, High Speed - Jacket Length: 500 mm, Lower Connection: 1.5" Beaded Pipe, Upper Connection: 1.0" Beaded Pipe | PRG-7410-41 | $1,286.90 | |
| Condenser, High Speed - Jacket Length: 600 mm, Lower Connection: 1.5" Beaded Pipe, Upper Connection: 1.0" Beaded Pipe | PRG-7410-42 | $1,362.71 | |
| Condenser, High Speed - Jacket Length: 700 mm, Lower Connection: 1.5" Beaded Pipe, Upper Connection: 1.0" Beaded Pipe | PRG-7410-43 | $1,438.51 | |
| Condenser, High Speed - Jacket Length: 500 mm, Lower Connection: 2.0" Beaded Pipe, Upper Connection: 1.5" Beaded Pipe | PRG-7410-51 | $1,416.58 | |
| Condenser, High Speed - Jacket Length: 600 mm, Lower Connection: 2.0" Beaded Pipe, Upper Connection: 1.5" Beaded Pipe | PRG-7410-52 | $1,494.39 | |
| Condenser, High Speed - Jacket Length: 700 mm, Lower Connection: 2.0" Beaded Pipe, Upper Connection: 1.5" Beaded Pipe | PRG-7410-53 | $1,576.17 |
