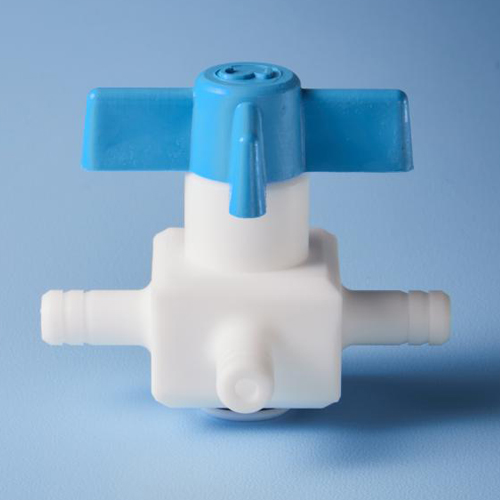

Cowie®, PTFE T-Type Valve, Bayonet Fitting

Description

General purpose COWIE® PTFE T-Type Valve, Bayonet Fitting with a pure PTFE body are suitable for low pressure and temperature applications.

Available as a 2-way or 3-way valve with either bayonet or screw fittings.

Maximum pressure 1bar / Vacuum 5mmHg.

NOTE: Rapid temperature changes over a range of 25°C may cause leakage due to the expansion properties of PTFE.

• Virgin grade PTFE conforming to FDA and USP Class VI.
• Virtually total chemical resistance.
• Temperature Range, -200°C up to 260°C (-328°F to +500°F).
• You can consider the shelf life of the COWIE® PTFE T-Type Valve, Bayonet Fitting indefinite within the confines of normal use and storage conditions.
• Autoclavable.

Teflon Information

Teflon, also known as PTFE (Polytetrafluoroethylene), is a synthetic fluoropolymer with a wide range of applications due to its unique properties. Key specifications include high temperature resistance, excellent chemical resistance, low friction, and non-stick characteristics.

Custom Fabrication Available

Prism Research Glass has the skills and equipment to fabricate custom-designs. Prism Research Glass can produce repetitive items as well as perform a single unit fabrication. If your needs require a custom fabrication please contact the Prism Research Glass team with your specifications. You can call us Toll Free at (800) 771-6773 or fill out our form here.

We pledge excellence in everything we make and market, providing the safest, most effective and highest quality products.
