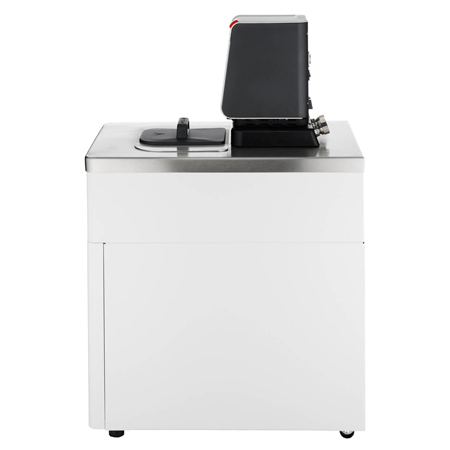

Julabo, Refrigerated Circulator, CORIO™ CD-600F
SKU: JB-CD-600F
Price Range$9,647.00
Description
JULABO CORIO™ CD-600F Refrigerated Heating Circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. The CORIO™ CD circulator incorporates easy change-over for control of fluid circulation internally or externally. Refrigeration combinations offer a low temperature range from -20 °C to -40 °C with an upper limit of 150 °C. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs.
USB connection for external PC control and data-logging. A space-saving cooling coil design yields more usable space in the bath tank. Bath lid and drain tap included.
PID temperature control provides ±0.03 °C stability. Centrifugal pump capacity of 15 L/min with pressure to 5.1 psi.
Stainless steel bath tank. Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
- Models for internal and external applications
- Bright, white, easy to read display
- Very quiet
- Easy pump change-over (internal and external circulation)
- External pump connections (M16x1)
- USB connection
- Space-saving cooling coil design yields more usable space in the bath tank
- Bath lid and drain tap included
- Removable ventilation grid
- Refrigeration unit without side vents
- Class III (FL) according to DIN 12876-1
Specs-At-A-Glance
| Cooling Capacity |
|
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Heating Capacity (kW) | 1 @ 115 V, 2 @ 230 V | ||||||||||||||
| Cooling Capacity | 0.06 kW @ -30 °C, 0.18 kW @ -20 °C, 0.29 kW @ -10 °C, 0.53 kW @ 0 °C, 0.6 kW @ 20 °C | ||||||||||||||
| Heating or Cooling Capability | Both | ||||||||||||||
| Working Temp Range (°C) | -35 … +150 | ||||||||||||||
| Pump Capacity Flow Rate (l/min) | 15 | ||||||||||||||
| Pump Capacity Flow Pressure (psi) | 5.08 | ||||||||||||||
| External Devices | Remote Control | ||||||||||||||
| Dimensions W x L x H (in) | 13 x 18.5 x 27.2 | ||||||||||||||
| Fluid Type | Silicone, Water, Other | ||||||||||||||
| Weight (lbs) | 79.4 | ||||||||||||||
| Power Options | 115 V / 60 Hz NRTL, 230 V / 60 Hz | ||||||||||||||
| Additional Options | NRTL (select voltage/frequency combinations only) |
| Downloads |
| Manual For Refrigerated Baths |
| Manual For CORIO CD |
| CORIO CD-600F Data Sheet |
Julabo
JULABO is one of the world’s leading manufacturers of temperature control instruments for research, industry and science. For over five decades our premium products have always provided our customers with the exact temperature at the desired time.
With professional expertise and great commitment, we are driving forward the development in temperature control technology and thereby fulfilling our responsibility as a premium provider at the top of the world market. In line with our corporate vision >Superior Temperature Technology for a better Life.
Custom Fabrication Available
Prism Research Glass, Inc. has the skills and equipment to fabricate custom-designs. Prism Research Glass, Inc. can produce repetitive items as well as perform a single unit fabrication. If your needs require a custom fabrication please reach out to the Prism Research Glass, Inc. team with your specifications. You can call us Toll Free at (800) 771-6773 or fill out our form here.
We pledge excellence in everything we make and market, providing the safest, most effective and highest quality products.
| Name | SKU | Price | Buy |
|---|---|---|---|
| Julabo, Refrigerated Circulator, CORIO™ CD-600F - Power Options: 115 V / 60 Hz NRTL | JB-9012704.02 | $9,647.00 | |
| Julabo, Refrigerated Circulator, CORIO™ CD-600F - Power Options: 230 V / 60 Hz | JB-9012704.13 | $9,647.00 |
