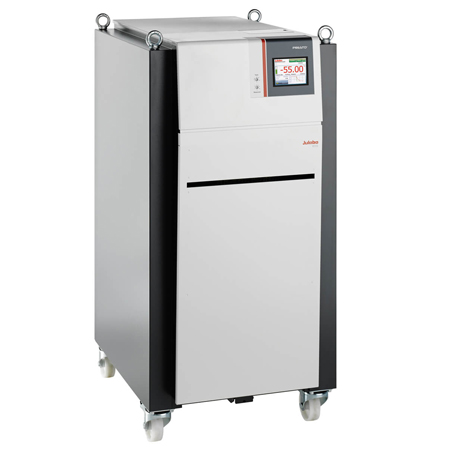

Julabo, Temperature Control Systems, PRESTO®, W55

SKU: JB-PRESTO-W55

Price RangeCall for Quote

Description

JULABO PRESTO® Highly Dynamic Temperature Control Systems for highly precise temperature control of external applications. Systems offer rapid heating and cooling rates for fast compensation of external events. The hydraulically sealed heat exchanger design afford a wide working temperature range without changing fluids. All units feature a 5.7″ industrial color TFT touch screen interface for unit operation, external integration and programming.
These instruments cover a working temperature range of -30 to +250°C to -92 to 250 °C. Up to three user levels with password managment enable safe, repeatable operation. Systems incorporate USB (host and device), Ethernet, SD-card slot, RS232 port, stand-by input and Pt100 external temperature sensor port.
The graphite bearing centrifugal pressure pump is lubricated by the bath fluid. All models (except for A30) can operate under pressure control to safeguard pressure sensitive applications (such as jacketed glass reactors).
Air and water-cooled versions available. Use only with approved JULABO fluids. Systems can operate with silicone fluids (Thermal P60 and Thermal P90) and HFEs (Fluorinert® and Galden®). Single stage PRESTO systems can operate with 1:1 ethylene glycol/water mixtures from -30 to +90 °C. Additional accessories available.

  • For highly precise, external temperature applications
  • Rapid heating and cooling
  • Fast compensation of exothermic reaction
  • Wide working temperature ranges without changing fluids
  • Highest performance with small footprint
  • Space-saving design optimizes space utilization in your lab
  • NEW 5,7” industrial color TFT touch screen
  • well-organized view of important information with unmatched, intuitive user friendliness
  • Up to 3 user level with password management
  • NEW USB (Host und Device)
  • NEW Ethernet
  • NEW SD-Card slot
  • RS232 / optional RS485 / optional Profibus DP
  • Stand-by input
  • Filling system accessible from the top

Specs-At-A-Glance

Cooling Capacity
°C 200 20 0 -10 -20 -30 -40 -50
kW 13.5 15 10 6.5 4 2.5 1.2 0.3
Cooling Capacity 0.3 kW @ -50 °C, 1.2 kW @ -40 °C, 10 kW @ 0 °C, 13.5 kW @ 200 °C, 15 kW @ 20 °C, 2.5 kW @ -30 °C, 4 kW @ 20 °C, 6.5 kW @ -10 °C
Heating or Cooling Capability Both
Working Temp Range (°C) -55 … +250
Pump Capacity Flow Rate (l/min) 35…80
External Devices External Temp Probe, Remote Control
Dimensions W x L x H (in) 24 x 33.3 x 49.2
Fluid Type Silicone, Fluorinert/Galden, Other
Weight (lbs) 634.9
Power Options 208 V – 230 V / 3 Ph. / 60 Hz, 400 V / 3 Ph. / 50 Hz
Heating Capacity (kW) 12.5 @ 208 V, 15 @ 230 V, 15 @ 400 V
NameSKUPriceBuy
Julabo, Temperature Control Systems, PRESTO®, W55 - Options: PRESTO W55JB-9421552.16Call for Quote
