Caframo Lab Solutions®, PTFE Anchor Paddle, Model CLS-A183

Description

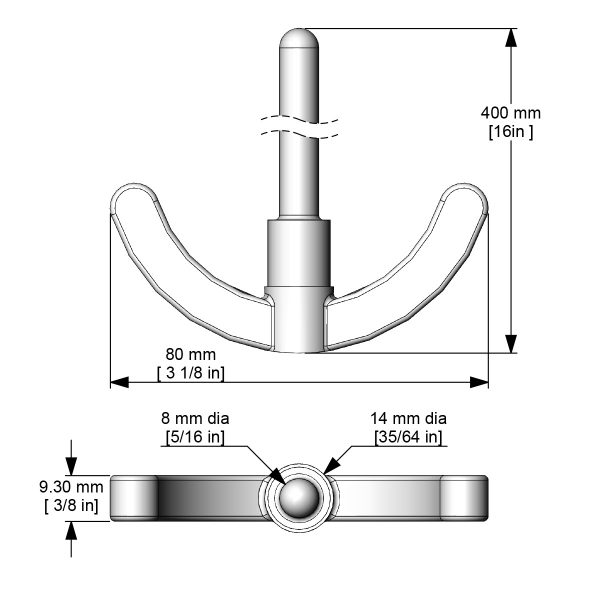

Prism Research Glass is proud to offer the Caframo PTFE Anchor Paddle. A tangential flow PTFE impeller for low speed, higher viscosity mixing. The 80 mm (3 ⅛”) blade is attached to an 8 mm (5/16”) diameter PTFE-coated shaft, designed for use in round bottom vessels and reaction flasks. The stainless steel core of the shaft provides stability. PTFE (polytetrafluoroethylene) can be used under the most adverse conditions. This high performance coating is insoluble, non-contaminating and has exceptional thermal resistance. It is easy to clean, does not scratch other surfaces and is unbreakable.

Flow Pattern	Tangential
Blade Diameter	80 mm (3 ⅛”)
Shaft Length	400 mm (16”)
Shaft Diameter	8 mm (5/16”)
Material	PTFE blade, with stainless steel core in shaft for stability
Weight	113 g (0.2 lb)



A183				PTFE Anchor Paddle, 80 mm (3 ⅛ in) blade
Use with: CLS-BDC1850, CLS-BDC3030, CLS-BDC6015, CLS-BDC2002, CLS-BDC2010 overhead stirrers



• Features

  • Tangential flow
  • PTFE blades
  • Stainless steel core in shaft
  • High heat resistance
  • Autoclavable
  • Scratch and chip resistant
  • Poor adhesion – materials release easily from impeller
  • One piece

• Benefits

  • Effective for low speed medium to high viscosity mixing
  • Excellent chemical (including acidic and caustic) resistance
  • Provides stability to impeller
  • Suitable for heated processes
  • Good for biotechnology processes
  • Low risk of particles introduced to batch
  • Easy to clean
  • Quick to insert and begin mixing

Caframo Stirrer Guide

Teflon Information

Teflon, also known as PTFE (Polytetrafluoroethylene), is a synthetic fluoropolymer with a wide range of applications due to its unique properties. Key specifications include high temperature resistance, excellent chemical resistance, low friction, and non-stick characteristics.

Borosilicate Glassware Information

Prism Research Glass makes our glassware of Borosilicate Glassware often referred to as Pyrex. Borosilicate glassware is made from a blend of silica and boron trioxide. It is the standard for laboratory use because of its chemical resistance to various chemicals. This resistance makes it suitable for diverse laboratory applications. It is highly resistant to chemical attack by most substances, including water, acids, and organic solvents.

Borosilicate has a low coefficient of thermal expansion which means it can withstand rapid temperature changes. It can typically handle temperature ranges between -80°C (-112°F) and 500°C (930°F) without cracking and typically has a melting point of around 1650°C (3000°F).

Custom Fabrication Available

Prism Research Glass has the skills and equipment to fabricate custom-designs. Prism Research Glass can produce repetitive items as well as perform a single unit fabrication. If your needs require a custom fabrication please contact the Prism Research Glass team with your specifications. You can call us Toll Free at (800) 771-6773 or fill out our form here.

We pledge excellence in everything we make and market, providing the safest, most effective and highest quality products.

Borosilicate Glassware MSDS
