Reaction Vessel Lids, 3-Neck with “BP-Taper” Connections (PRG-5277)
SKU: PRG-5277
Price Range$378.99 – $1,140.89
Description
Lids are a Duran style flange and can be mated to both O-Ring and non O-Ring flanges from the Duran family. Three top ports are standard taper joints. Top rim of tapered joints are tooled for beaded pipe connection. Dual purpose joints. Other options are available upon request.
| Name | SKU | Price | Buy |
|---|---|---|---|
| Reaction Vessel Lids, 3-Neck with "BP-Taper" Connections (PRG-5277) - Flange Size: 100 mm, Center Neck Joint: 1.0" B.P. x 24/40, Side Neck Joint: 1.0" B.P. x 24/40 | PRG-5277-01 | $378.99 | |
| Reaction Vessel Lids, 3-Neck with "BP-Taper" Connections (PRG-5277) - Flange Size: 100 mm, Center Neck Joint: 1.5" B.P. x 29/42, Side Neck Joint: 1.0" B.P. x 24/40 | PRG-5277-02 | $489.10 | |
| Reaction Vessel Lids, 3-Neck with "BP-Taper" Connections (PRG-5277) - Flange Size: 150 mm, Center Neck Joint: 1.0" B.P. x 24/40, Side Neck Joint: 1.0" B.P. x 24/40 | PRG-5277-03 | $531.86 | |
| Reaction Vessel Lids, 3-Neck with "BP-Taper" Connections (PRG-5277) - Flange Size: 150 mm, Center Neck Joint: 1.5" B.P. x 29/42, Side Neck Joint: 1.0" B.P. x 24/40 | PRG-5277-04 | $537.98 | |

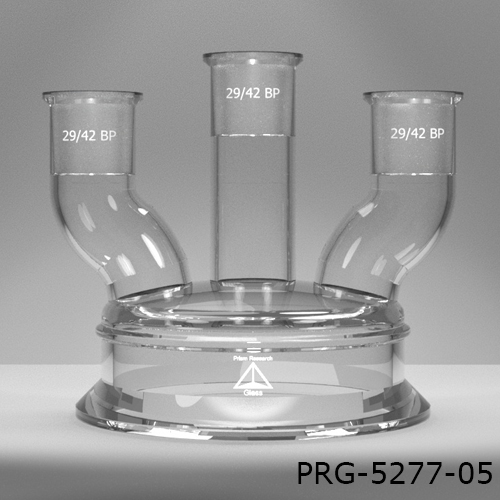

| Reaction Vessel Lids, 3-Neck with "BP-Taper" Connections (PRG-5277) - Flange Size: 150 mm, Center Neck Joint: 1.5" B.P. x 29/42, Side Neck Joint: 1.5" B.P. x 29/42 | PRG-5277-05 | $548.29 | |

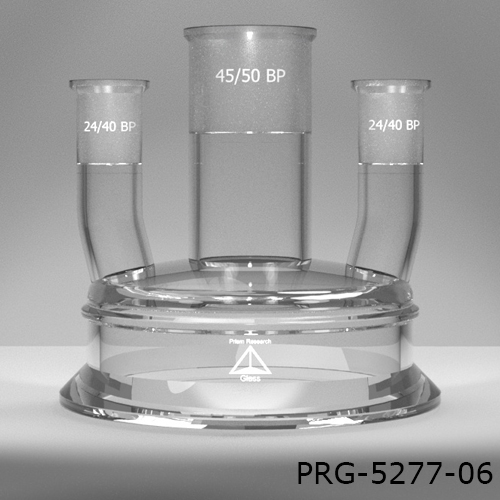

| Reaction Vessel Lids, 3-Neck with "BP-Taper" Connections (PRG-5277) - Flange Size: 150 mm, Center Neck Joint: 2.0" B.P. x 45/50, Side Neck Joint: 1.0" B.P. x 24/40 | PRG-5277-06 | $560.23 | |
| Reaction Vessel Lids, 3-Neck with "BP-Taper" Connections (PRG-5277) - Flange Size: 200 mm, Center Neck Joint: 2.0" B.P. x 45/50, Side Neck Joint: 1.0" B.P. x 24/40 | PRG-5277-07 | $1,101.07 | |

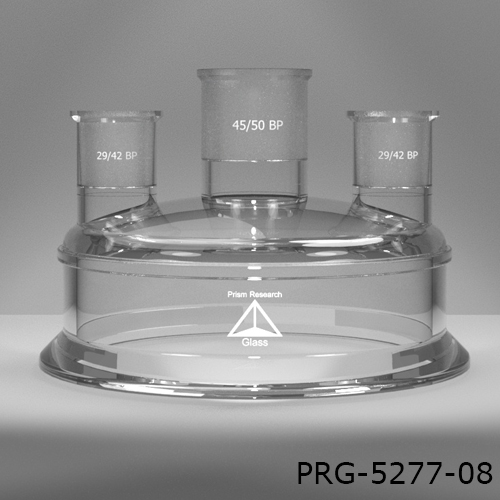

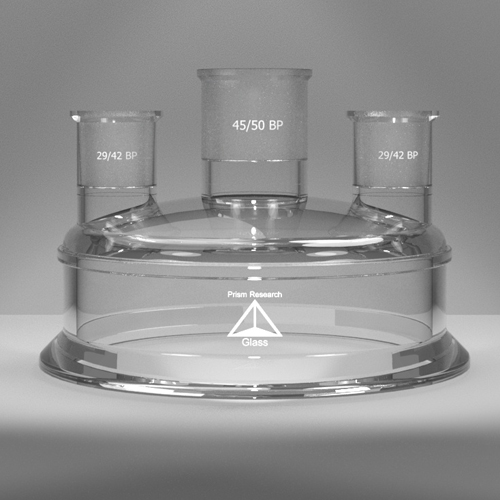

| Reaction Vessel Lids, 3-Neck with "BP-Taper" Connections (PRG-5277) - Flange Size: 200 mm, Center Neck Joint: 2.0" B.P. x 45/50, Side Neck Joint: 1.5" B.P. x 29/42 | PRG-5277-08 | $1,101.59 | |

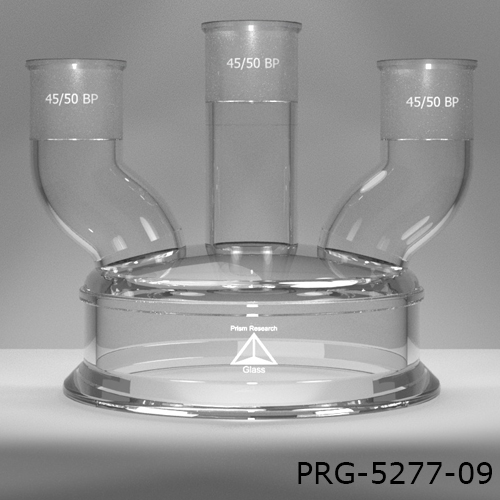

| Reaction Vessel Lids, 3-Neck with "BP-Taper" Connections (PRG-5277) - Flange Size: 200 mm, Center Neck Joint: 2.0" B.P. x 45/50, Side Neck Joint: 2.0" B.P. x 45/50 | PRG-5277-09 | $1,140.89 |
