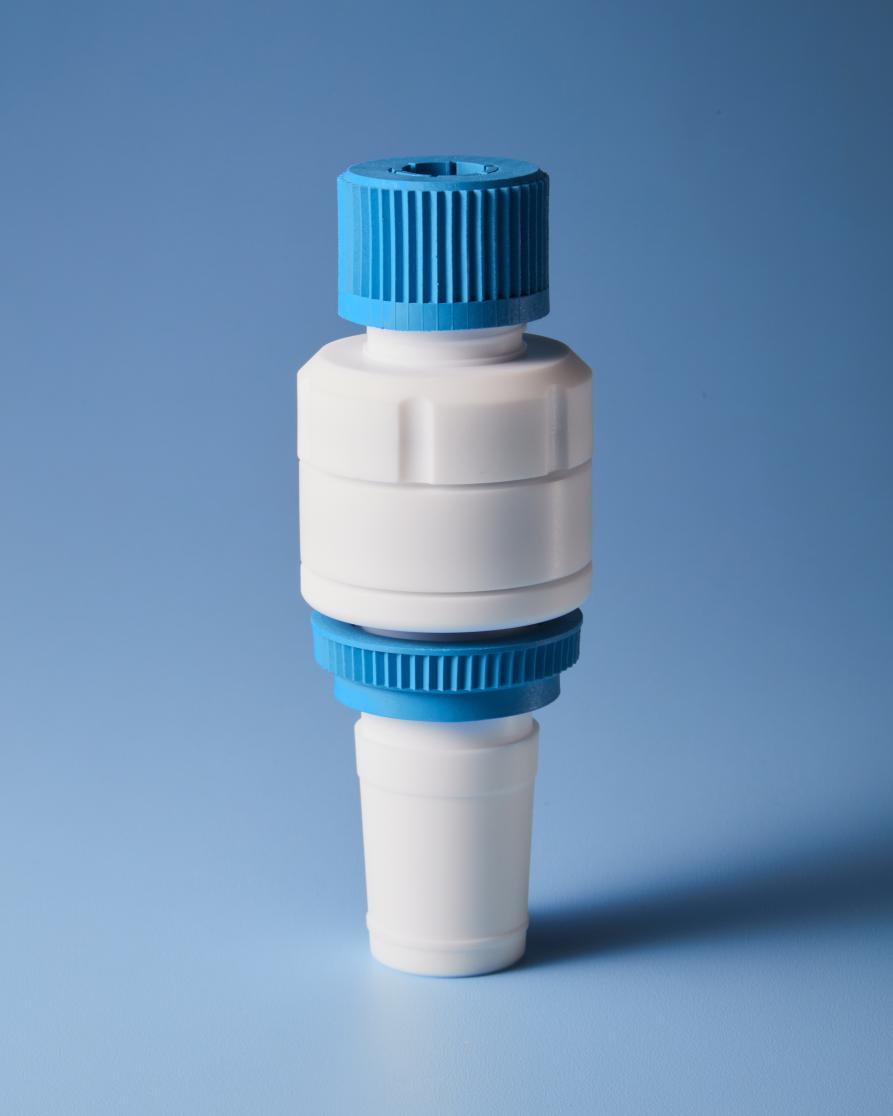

Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide
SKU: CW-005.1
Price Range$555.77 – $715.37
Description
COWIE® Universal Stirrer Guide for use with standard taper ground glass joints can be used with PTFE Shaft Stirrers and glass and metal shaft stirrers.
Unique features of the design are a permanently loaded Composite PTFE/PEEK Seal and a Glass Ball-Bearing for rigidity and smoothness of operation.
- Exceptional chemical resistance
- Anti-whip and reduced vibration
- Vacuum (5mmHg) and pressure (3-5psi)
- No shedding
- Maximum recommended speeds; continuous 500rpm, intermittent 800rpm
Replacement parts available.
PTFE Shaft Stirring
A complete range of High Performance Shaft Stirring Equipment to meet the needs of Laboratory, Pilot Plant, and Small Scale manufacture.
PTFE used in the Manufacture of COWIE® PTFE Laboratory Products is pure, virgin material, which conforms to FDA and USP Class VI requirements.
- One piece fused construction
- Chemically Inert
- Designed to reduce contamination and simplify cleaning
- Non-scratch
| Name | SKU | Price | Buy |
|---|---|---|---|
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Full Length 'A' Type Cone, Standard Taper Joint: 19/22, Shaft Ø: 6 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.101.1.7 | $611.42 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Full Length 'A' Type Cone, Standard Taper Joint: 24/40, Shaft Ø: 6 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.102.7 | $611.42 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Full Length 'A' Type Cone, Standard Taper Joint: 24/40, Shaft Ø: 8 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.104.7 | $611.42 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Full Length 'A' Type Cone, Standard Taper Joint: 24/40, Shaft Ø: 10 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.105.7 | $611.42 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Full Length 'A' Type Cone, Standard Taper Joint: 29/42, Shaft Ø: 10 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.106.7 | $611.42 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Full Length 'A' Type Cone, Standard Taper Joint: 29/42, Shaft Ø: 12 mm, Height: 110 mm, Guide Ø: 55 mm | CW-005.108.7 | $715.37 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Full Length 'A' Type Cone, Standard Taper Joint: 34/45, Shaft Ø: 16 mm, Height: 110 mm, Guide Ø: 55 mm | CW-005.111.7 | $715.36 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Full Length 'A' Type Cone, Standard Taper Joint: 45/50, Shaft Ø: 16 mm, Height: 110 mm, Guide Ø: 55 mm | CW-005.112.7 | $715.36 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 19/26, Shaft Ø: 6 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.201.7 | $555.77 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 24/29, Shaft Ø: 6 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.202.7 | $555.77 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 19/26, Shaft Ø: 8 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.203.7 | $555.77 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 24/29, Shaft Ø: 8 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.204.7 | $555.77 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 24/29, Shaft Ø: 10 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.205.7 | $555.77 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 29/32, Shaft Ø: 10 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.206.7 | $555.77 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 34/35, Shaft Ø: 10 mm, Height: 96 mm, Guide Ø: 45 mm | CW-005.207.7 | $555.77 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 29/32, Shaft Ø: 12 mm, Height: 110 mm, Guide Ø: 55 mm | CW-005.208.7 | $650.35 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 34/35, Shaft Ø: 12 mm, Height: 110 mm, Guide Ø: 55 mm | CW-005.209.7 | $650.35 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 34/35, Shaft Ø: 16 mm, Height: 110 mm, Guide Ø: 55 mm | CW-005.211.7 | $650.35 | |
| Cowie®, PTFE Shaft Stirring, Universal Stirrer Guide - Options: Medium Length 'B' Type Cone, Standard Taper Joint: 45/40, Shaft Ø: 16 mm, Height: 110 mm, Guide Ø: 55 mm | CW-005.212.7 | $650.35 |
