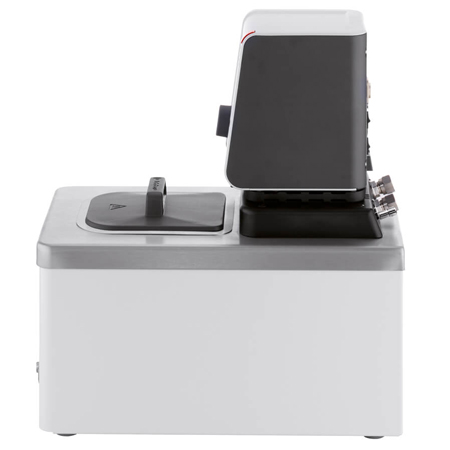

Julabo, Heating Circulator, DYNEO™ DD-BC4

SKU: JB-DD-BC4

Julabo, Heating Circulator, DYNEO™ DD-BC4
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Image 2
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Image 3
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Image 4
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Image 5

Price Range$4,664.00 – $5,836.00

Description

DYNEO™ heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank for temperatures to 200 °C. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. Systems include insulated stainless-steel tanks with integrated drain valve. Color TFT display with central rotary knob controller, multi-lingual interface, integrated programmer, Pt100 port for external temperature control. USB connection for external PC control and data-logging; Digital option includes RS232 port; analog option includes analog interface for voltage or current control. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Class III (FL) according to DIN 12876-1.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)

  • Suitable for internal and external applications
  • Powerful and infinitely adjustable pressure pump
  • Flow rate 22 l/min, pressure 0.6 bar
  • Easy switching between internal and external circulation
  • Large color TFT display, multilingual interface
  • Central rotary knob (controller) simplifies operation
  • Integrated programmer for 8 x 60 program steps
  • Integrated external Pt100 connection
  • USB port
  • RS232 interface or analog interfaces
  • Bath cover included with delivery
  • Integrated drain makes emptying liquid easy and safe.
  • High-quality thermal insulation of the bath tank

Specs-At-A-Glance

Heating Capacity (kW) 1 @ 115 V, 2 @ 230 V
Working Temp Range (°C) +20…+200
Pump Capacity Flow Rate (l/min) 8…23
Heating or Cooling Capability Heating only
Pump Capacity Flow Pressure (psi) 1.5…8.7
External Devices Remote Control
Dimensions W x L x H (in) 9.1 x 16.1 x 16.5
Fluid Type Silicone, Water, Other
Weight (lbs) 18.7
Power Options 100 V – 115 V / 50 – 60 Hz, 200 V – 230 V / 50 – 60 Hz
Additional Options Base Model, Analog Interface, Analog Interface & NRTL, Digital Interface, Digital Interface & NRTL, NRTL
Downloads
Manual for DYNEO DD
Data Sheet for DYNEO DD-BC4

NameSKUPriceBuy
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 110 V - 115 V / 50 - 60 Hz, Additional Options: Analog InterfaceJB-9021504.22.A$5,337.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 110 V - 115 V / 50 - 60 Hz, Additional Options: Analog Interface and NRTLJB-9021504.22.A.CSA/UL$5,836.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 110 V - 115 V / 50 - 60 Hz, Additional Options: Digital InterfaceJB-9021504.22.D$5,086.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 110 V - 115 V / 50 - 60 Hz, Additional Options: Digital Interface and NRTLJB-9021504.22.D.CSA/UL$5,331.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 110 V - 115 V / 50 - 60 Hz, Additional Options: NRTLJB-9021504.22.CSA/UL$5,161.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 200 V - 230 V / 50 - 60 Hz, Additional Options: Base ModelJB-9021504.33$4,664.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 200 V - 230 V / 50 - 60 Hz, Additional Options: Analog InterfaceJB-9021504.33.A$5,337.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 200 V - 230 V / 50 - 60 Hz, Additional Options: Analog Interface and NRTLJB-9021504.33.A.CSA/UL$5,836.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 200 V - 230 V / 50 - 60 Hz, Additional Options: Digital InterfaceJB-9021504.33.D$5,086.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 200 V - 230 V / 50 - 60 Hz, Additional Options: Digital Interface and NRTLJB-9021504.33.D.CSA/UL$5,331.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 200 V - 230 V / 50 - 60 Hz, Additional Options: NRTLJB-9021504.33.CSA/UL$5,161.00
Julabo, Heating Circulator, DYNEO™ DD-BC4 - Power Options: 110 V - 115 V / 50 - 60 Hz, Additional Options: Base ModelJB-9021504.22$4,664.00
Don't see what you need? Get a custom quote!
