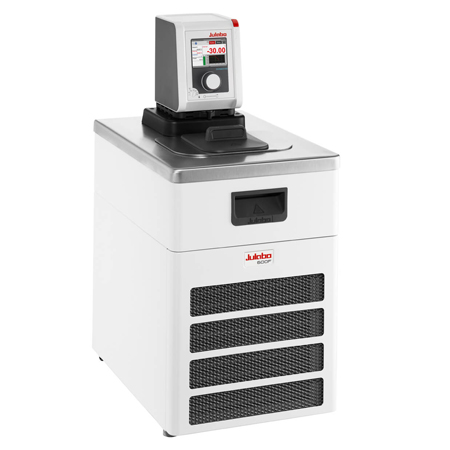

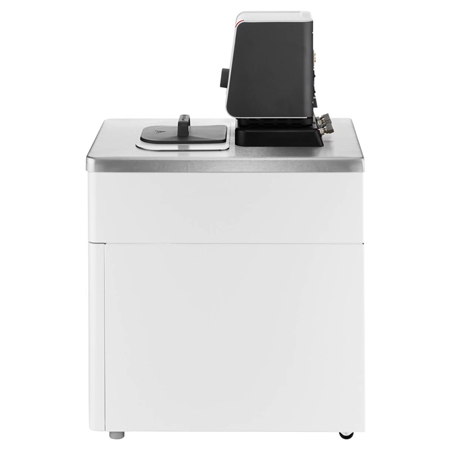

Julabo, Refrigerated Circulator, DYNEO™ DD-600F

SKU: JB-DD-600F

Price Range$8,101.00$8,901.00

Description

DYNEO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refigeration combinations afford low temperature capabilities from -20 °C to -50 °C with an upper temperature limit of 200 °C. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A color TFT display with central rotary knob controller includes a multi-lingual interface, integrated programmer, Pt100 port for external temperature control, USB connection for external PC control and data-logging with digital options includin RS232 port or an analog module interface for voltage or current control. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Stainless steel bath tanks with integrated drain port.
Class III (FL) according to DIN 12876-1.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)

  • Powerful cooling machines
  • Suitable for internal and external applications
  • Optimized cooling coil design saves space in the bath tank
  • Powerful and infinitely adjustable pressure pump
  • Flow rate 22 l/min, pressure 0.6 bar
  • Easy switching between internal and external circulation
  • Large color TFT display, multilingual interface
  • Central rotary knob (controller) simplifies operation
  • Integrated programmer for 8 x 60 program steps
  • Integrated external Pt100 connection
  • USB port
  • RS232 interface or analog interfaces (optional)
  • Bath cover included with delivery
  • Integrated drain makes emptying liquid easy and safe.

Specs-At-A-Glance

Cooling Capacity
°C 200 20 0 -10 -20 -30
kW 0.6 0.6 0.44 0.27 0.16 0.04
Heating Capacity (kW) 1 @ 115 V, 2 @ 230 V
Cooling Capacity 0.04 kW @ -30 °C, 0.16 kW @ -20 °C, 0.27 kW @ -10 °C, 0.44 kW @ 0 °C, 0.6 kW @ 20 °C, 0.6 kW @ 200 °C
Heating or Cooling Capability Both
Working Temp Range (°C) -35 … +200
Pump Capacity Flow Rate (l/min) 8…23
Pump Capacity Flow Pressure (psi) 1.5…8.7
External Devices Remote Control
Dimensions W x L x H (in) 13 x 18.5 x 27.2
Fluid Type Silicone, Water, Other
Weight (lbs) 79
Power Options 115 V / 60 Hz, 200 V – 230 V / 50 – 60 Hz
Additional Options Base Model, Analog Interface, Digital Interface, NRTL
NameSKUPriceBuy
Julabo, Refrigerated Circulator, DYNEO™ DD-600F - Power Options: 115 V / 60 Hz, Additional Options: Base ModelJB-9021704.02$8,101.00
Julabo, Refrigerated Circulator, DYNEO™ DD-600F - Power Options: 115 V / 60 Hz, Additional Options: Analog InterfaceJB-9021704.02.A$8,835.00
Julabo, Refrigerated Circulator, DYNEO™ DD-600F - Power Options: 115 V / 60 Hz, Additional Options: Digital InterfaceJB-9021704.02.D$8,843.00
Julabo, Refrigerated Circulator, DYNEO™ DD-600F - Power Options: 115 V / 60 Hz, Additional Options: NRTLJB-9021704.02.CSA/UL$8,901.00
Julabo, Refrigerated Circulator, DYNEO™ DD-600F - Power Options: 200 V - 230 V / 50 - 60 Hz, Additional Options: Base ModelJB-9021704.33$8,101.00
Julabo, Refrigerated Circulator, DYNEO™ DD-600F - Power Options: 200 V - 230 V / 50 - 60 Hz, Additional Options: Analog InterfaceJB-9021704.33.A$8,835.00
Julabo, Refrigerated Circulator, DYNEO™ DD-600F - Power Options: 200 V - 230 V / 50 - 60 Hz, Additional Options: Digital InterfaceJB-9021704.33.D$8,843.00
