M5 O-Ring Train, #28 Ball / Socket
SKU: PRG-5730
Price Range Price range: $66.51 through $2,014.69
Description
EPA Method Five Sampling Train. #28 Ball O-Ring / Socket connection, NO vacuum grease needed. Available with a 3″ or 4″ filter frit. Frit materials options are either glass or Teflon. Ball O-Ring joints are supplied with both Silicone & Teflon coated Viton O-Ring.
Teflon Information
Teflon, also known as PTFE (Polytetrafluoroethylene), is a synthetic fluoropolymer with a wide range of applications due to its unique properties. Key specifications include high temperature resistance, excellent chemical resistance, low friction, and non-stick characteristics.
Borosilicate Glassware Information
Prism Research Glass makes our glassware of Borosilicate Glassware often referred to as Pyrex. Borosilicate glassware is made from a blend of silica and boron trioxide. It is the standard for laboratory use because of its chemical resistance to various chemicals. This resistance makes it suitable for diverse laboratory applications. It is highly resistant to chemical attack by most substances, including water, acids, and organic solvents.
Borosilicate has a low coefficient of thermal expansion which means it can withstand rapid temperature changes. It can typically handle temperature ranges between -80°C (-112°F) and 500°C (930°F) without cracking and typically has a melting point of around 1650°C (3000°F).
Custom Fabrication Available
Prism Research Glass has the skills and equipment to fabricate custom-designs. Prism Research Glass can produce repetitive items as well as perform a single unit fabrication. If your needs require a custom fabrication please contact the Prism Research Glass team with your specifications. You can call us Toll Free at (800) 771-6773 or fill out our form here.
We pledge excellence in everything we make and market, providing the safest, most effective and highest quality products.
| Name | SKU | Price | Buy |
|---|---|---|---|
| M5 O-Ring Train, #28 Ball / Socket - Options: 3" Filter Assembly - No Frit | PRG-5730-11 | $333.97 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: 3" Filter assembly with Glass Frit | PRG-5730-12 | $455.64 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: 3" Filter Assembly with Teflon Frit | PRG-5730-13 | $454.34 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: 4" Filter Assembly - No Frit | PRG-5730-14 | $443.21 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: 4" Filter Assembly with Glass Frit | PRG-5730-15 | $588.06 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: 4" Filter Assembly with Teflon Frit | PRG-5730-16 | $575.99 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: 2" Filter Assembly with Teflon Frit | PRG-5730-19 | $301.70 | |

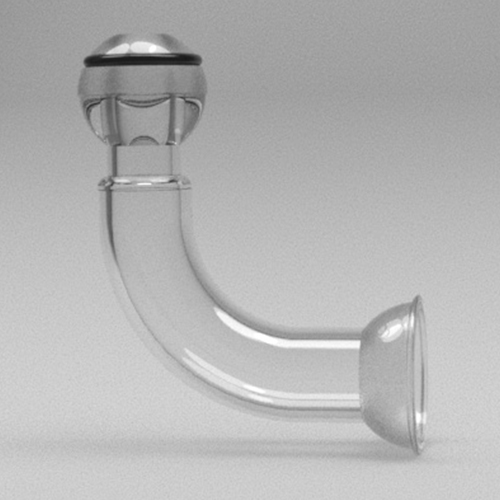

| M5 O-Ring Train, #28 Ball / Socket - Options: Cyclone By-pass Adapter | PRG-5730-07 | $66.51 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: Cyclone By-pass Adapter, GL-18 Thread for .250" Thermometer Compression Fit | PRG-5730-07T | $86.08 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: #28 Ball and Socket Complete - 3" Filter Assembly and No Frit | PRG-5730-01 | $1,738.61 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: #28 Ball and Socket Complete - 3" Filter Assembly and Glass Frit | PRG-5730-02 | $1,847.53 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: #28 Ball and Socket Complete - 3" Frit Assembly and Teflon Frit | PRG-5730-03 | $1,847.53 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: #28 Ball and Socket Complete - 4" filter Assembly and No Frit | PRG-5730-04 | $1,847.53 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: #28 Ball and Socket Complete - 4" filter Assembley and Glass Frit | PRG-5730-05 | $2,014.69 | |
| M5 O-Ring Train, #28 Ball / Socket - Options: #28 Ball and Socket Complete - 4" flter Assembly with Teflon Frit | PRG-5730-06 | $2,014.69 |
