MM5 “Riser-less System”
SKU: PRG-5682
Price Range Price range: $94.04 through $2,662.46
Description
Modified Method Five “MM5” Train is for semi-volatile air sampling without the use of a riser box. The “S” adapter, horizontal coil condenser, XAD trap and the “Pug” bottle assemble into a standard Method 5 Train. All #28 o-ring ball joints come with a Silicone O-Ring and a Teflon coated Viton O-Ring – NO vacuum grease required.
Teflon Information
Teflon, also known as PTFE (Polytetrafluoroethylene), is a synthetic fluoropolymer with a wide range of applications due to its unique properties. Key specifications include high temperature resistance, excellent chemical resistance, low friction, and non-stick characteristics.
Borosilicate Glassware Information
Prism Research Glass makes our glassware of Borosilicate Glassware often referred to as Pyrex. Borosilicate glassware is made from a blend of silica and boron trioxide. It is the standard for laboratory use because of its chemical resistance to various chemicals. This resistance makes it suitable for diverse laboratory applications. It is highly resistant to chemical attack by most substances, including water, acids, and organic solvents.
Borosilicate has a low coefficient of thermal expansion which means it can withstand rapid temperature changes. It can typically handle temperature ranges between -80°C (-112°F) and 500°C (930°F) without cracking and typically has a melting point of around 1650°C (3000°F).
Custom Fabrication Available
Prism Research Glass has the skills and equipment to fabricate custom-designs. Prism Research Glass can produce repetitive items as well as perform a single unit fabrication. If your needs require a custom fabrication please contact the Prism Research Glass team with your specifications. You can call us Toll Free at (800) 771-6773 or fill out our form here.
We pledge excellence in everything we make and market, providing the safest, most effective and highest quality products.
| Name | SKU | Price | Buy |
|---|---|---|---|
| MM5 "Riser-less System" - Options: Greaseless O-ring Seal | PRG-5682-01 | $2,531.47 | |

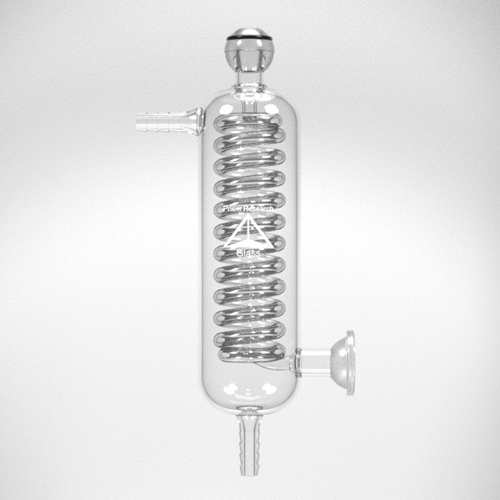

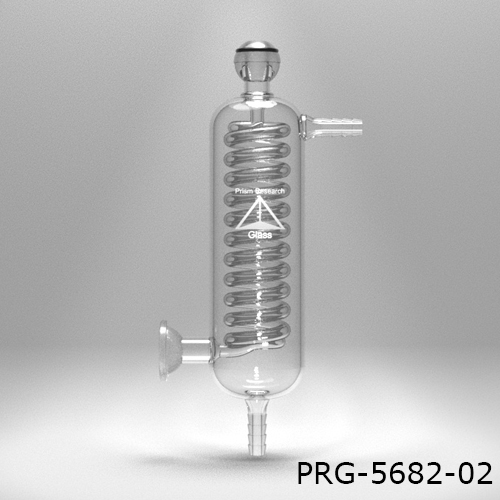

| MM5 "Riser-less System" - Options: Horizontal Condenser O-ring | PRG-5682-02 | $288.35 | |

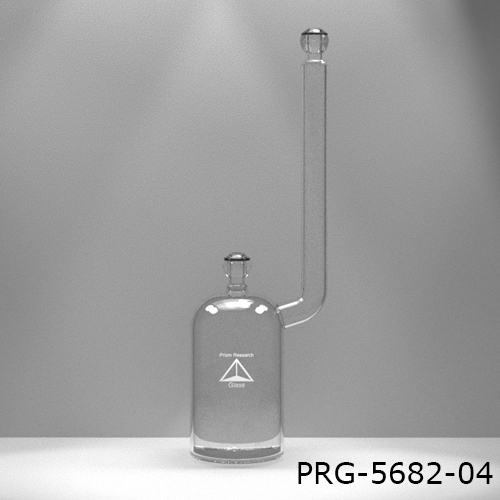

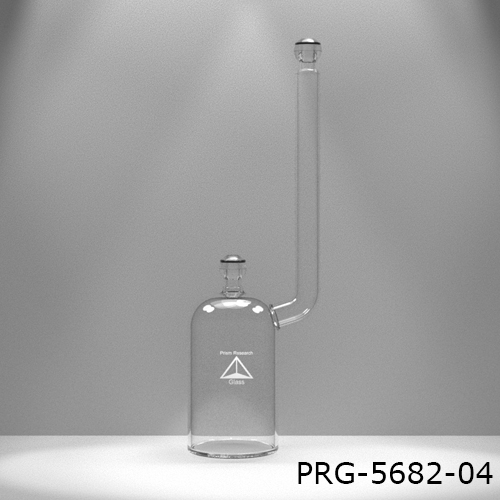

| MM5 "Riser-less System" - Options: Hybrid Bottle, Ball O-ring Joints | PRG-5682-04 | $291.84 | |
| MM5 "Riser-less System" - Options: "S" Connector | PRG-5682-05 | $94.04 | |
| MM5 "Riser-less System" - Options: S - Adapter with Thermocouple Port, GL-18 Thread with 1/4 Septum | PRG-5682-05T | $121.03 | |
| MM5 "Riser-less System" - Options: Greaseless O-ring Seal | PRG-5682-11 | $2,662.46 |
